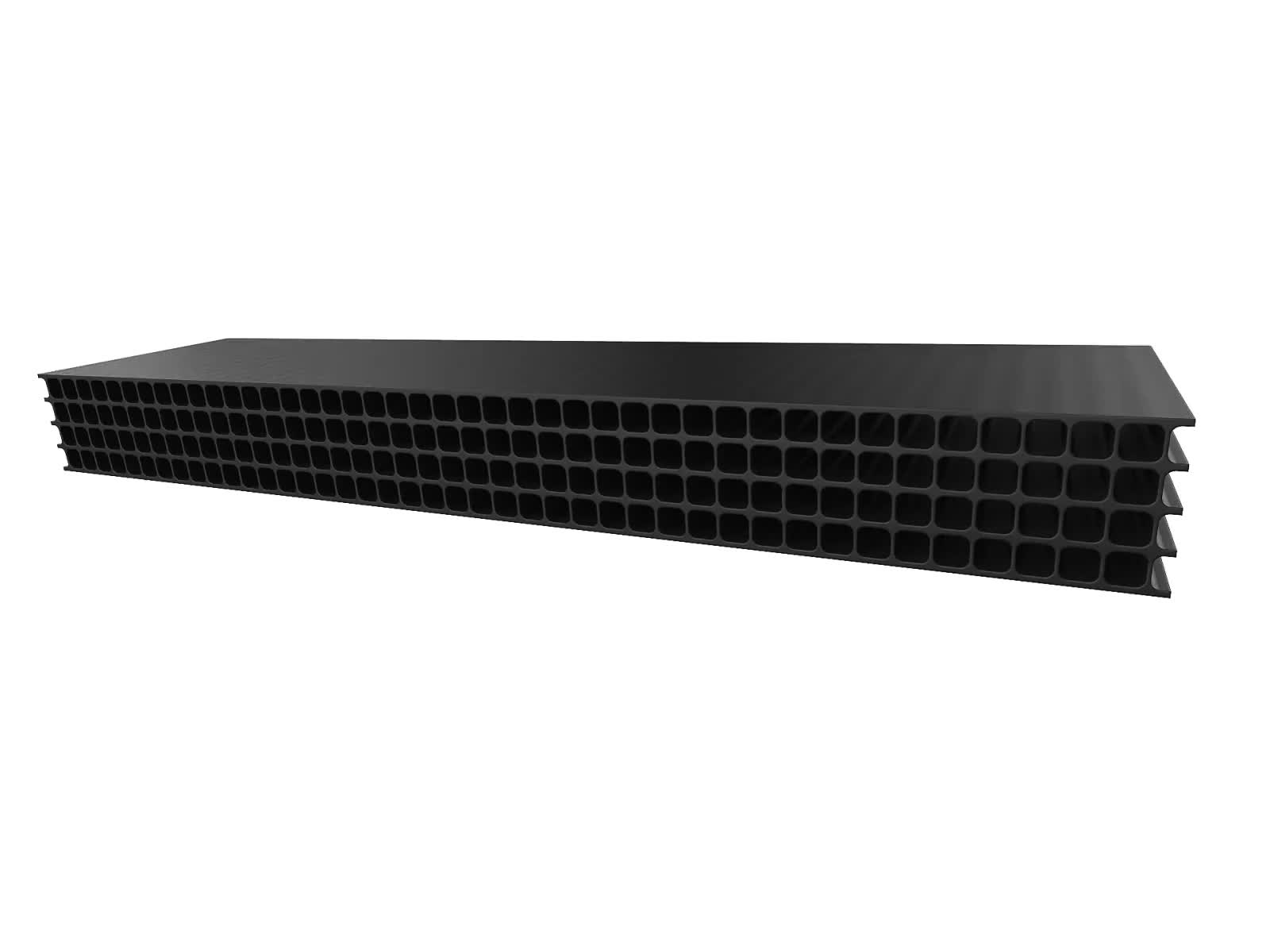

The VB20 Ventilation & Drainage Batten from VENT Systems is an advanced polypropylene batten engineered to support passive airflow and cavity drainage in roofing and wall systems. Designed specifically for skillion, cathedral, and trussed roofs, the VB20 ensures uninterrupted airflow above roof battens, even when insulation is present. This prevents moisture accumulation in low-velocity air zones, safeguarding the structure against condensation and related damage.
The VB20 creates a 20mm separation gap between the Colorbond roof and the vapour-permeable membrane, effectively preventing dew point transfer. It also establishes a ventilation and drainage cavity behind lightweight wall claddings, making it versatile for both residential and commercial applications.
Specifications:
Compression Strength: 1,320 Kpa, exceeding Australian standards for durability and reliability.
Vent Size: 4mm vents to block insect ingress while allowing optimal airflow.
Passive Airflow: Offers 14,500mm² per linear meter, ensuring effective ventilation.
Length: Manufactured in 1800mm lengths for easy handling and installation.
Material: Lightweight yet robust polypropylene construction.
Fire Testing: Tested to AS1530.3 with a spread of flame index of 6 and a smoke-developed index of 2.
Key features include an easy-to-install adhesive strip, compatibility with various roof types, and suitability for lightweight cladding systems. Insect-proof vents, superior compression strength, and passive airflow capabilities make the VB20 an essential product for ensuring ventilation and drainage in walls and roofs. For maximum performance, it can be used independently or integrated with other VENT Systems products as part of a complete passive ventilation system.
